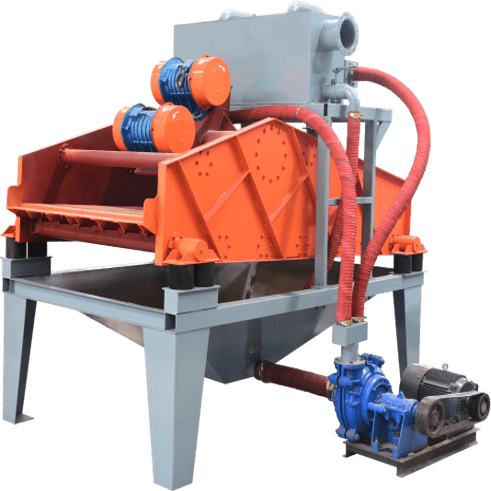

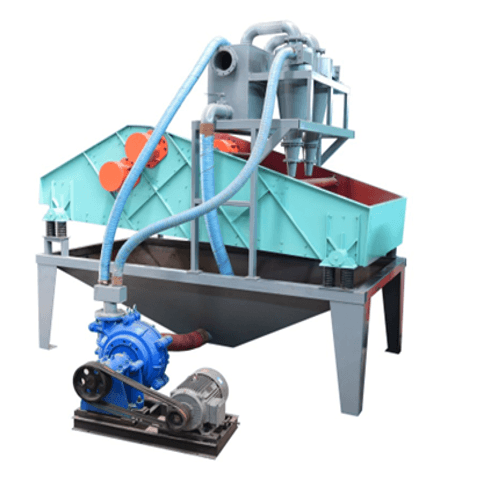

The dehydration and recovery integrated machine are a device that combines dehydration and fine sand recovery. The main functions are dehydration, desliming, and disintermediation. It can be used for sand washing in sub-sand and gravel plants, recovery of coal preparation slime, dry discharge of tailings in mineral processing plants, etc. It is composed of motor, slurry cleaning pump, cyclone, dewatering screen, cleaning Groove, return box and other components. The sand-water mixture discharged from sand washing flows into the cleaning tank, and the sand-water mixture is transported to the cyclone by the slag paddle pump at high pressure. The fine sand centrifugally classified is supplied to the dewatering screen through the grit settling nozzle, and the coarse sand and fine sand are sent to the dewatering screen. After dehydration, the sand and water are effectively separated, a small amount of fine sand flows into the cleaning tank, and the fine sand is recycled by the slag paddle pump repeatedly, and the product is discharged from the discharge port of the dehydration screen and transported to the stockyard.
